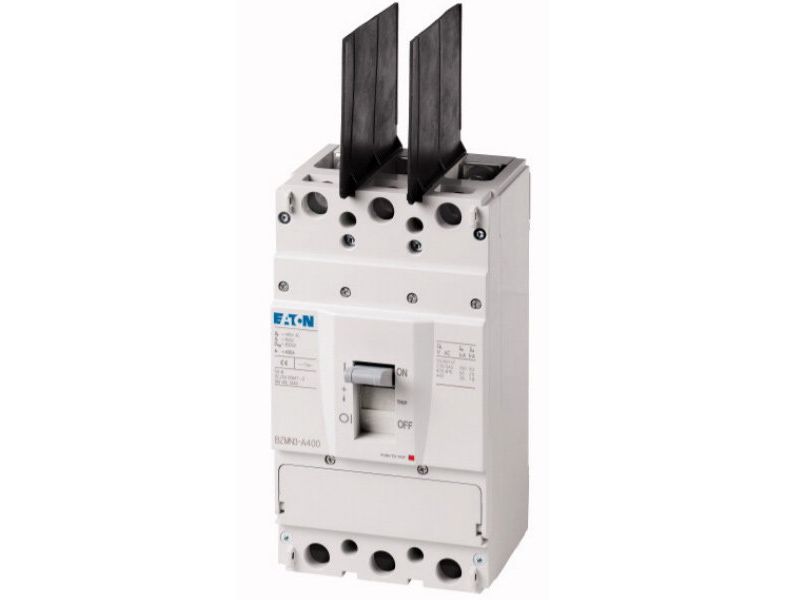

BZM3-XKP Межфазная перегородка BZM3
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Технические характеристики
| Артикул | 158300 |
| Объем, дм3 | 0,785 |
| Масса, кг | 0,14 |
Design verification as per IEC/EN 61439
| IEC/EN 61439 design verification | , | , | , |
| 10.2 Strength of materials and parts | , | , | , |
| 10.2.2 Corrosion resistance | , | , | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | , | , | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | , | , | Meets the product standard's requirements. |
| 10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | , | , | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | , | , | Meets the product standard's requirements. |
| 10.2.5 Lifting | , | , | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | , | , | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | , | , | Meets the product standard's requirements. |
| 10.3 Degree of protection of ASSEMBLIES | , | , | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | , | , | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | , | , | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | , | , | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | , | , | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | , | , | Is the panel builder's responsibility. |
| 10.9 Insulation properties | , | , | , |
| 10.9.2 Power-frequency electric strength | , | , | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | , | , | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | , | , | Is the panel builder's responsibility. |
| 10.10 Temperature rise | , | , | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | , | , | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | , | , | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | , | , | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Тип
- автоматический выключатель
Объем дм3
0,79
дм3
Модель
BZM3-XKP
Бренд
Eaton
Вес
0,14 кг
Производитель
Eaton (Moeller)
Страна
Германия
