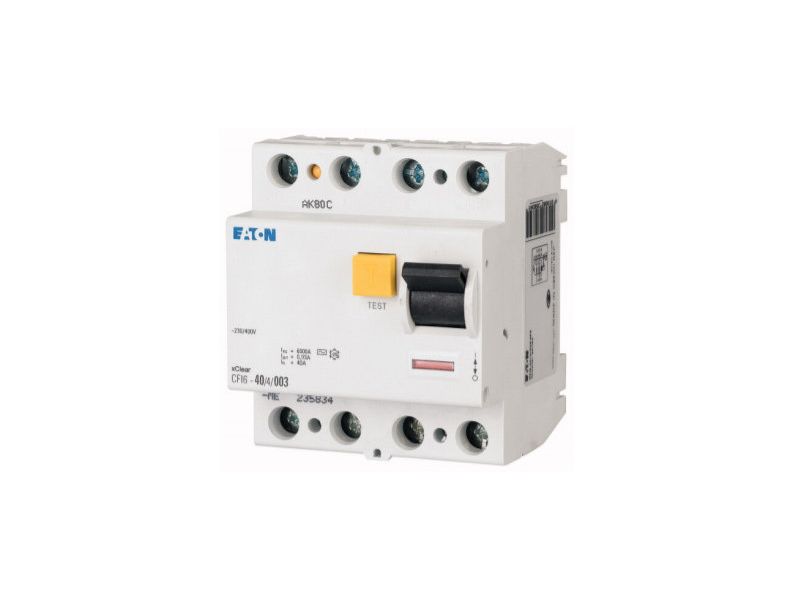

Устройство защитного отключения Eaton (Moeller) CFI6-25/4/03-A-DE, 4 полюса, тип а, 25а, 300ма
235782
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Технические характеристики
| Артикул | 235782 |
| Объем, дм3 | 0,204 |
| Масса, кг | 0,32 |
Design verification as per IEC/EN 61439
| Technical data for design verification | |||
| Rated operational current for specified heat dissipation | In | A | 25 |
| Heat dissipation per pole, current-dependent | sub>,vid | W | 0 |
| Equipment heat dissipation, current-dependent | sub>,vid | W | 2.8 |
| Static heat dissipation, non-current-dependent | sub>,vs | W | 0 |
| Heat dissipation capacity | sub>,diss | W | 0 |
| Operating ambient temperature min. | °C | -25 | |
| Operating ambient temperature max. | °C | 55 | |
| Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C | |||
| IEC/EN 61439 design verification | |||
| 10.2 Strength of materials and parts | |||
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
| 10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.2.7 Inscriptions | Meets the product standard's requirements. | ||
| 10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
| 10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
| 10.9 Insulation properties | |||
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
| 10.10 Temperature rise | |||
| Is the panel builder's responsibility. The specifications for the switchgear must be observed. | |||
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Technical data ETIM 6.0
| Circuit breakers and fuses (EG000020) / Residual current circuit breaker (RCCB) (EC000003) | |||
| Electric engineering, automation, process control engineering / Electrical installation, device / Residual current protection system / Residual current circuit breaker (RCCB) (ecl@ss8.1-27-14-22-01 [AAB906011]) | |||
| Number of poles | 4 | ||
| Nominal rated voltage | V | 400 | |
| Nominal rated current | A | 25 | |
| Rated fault current | A | 0.3 | |
| Mounting method | DIN rail | ||
| Leakage current type | A | ||
| Selective protection | No | ||
| Short-circuit breaking capacity (Icw) | kA | 6 | |
| Surge current capacity | kA | 0.25 | |
| Frequency | 50 Hz | ||
| Additional equipment possible | Yes | ||
| Degree of protection (IP) | IP20 | ||
| Construction size (in accordance with DIN 43880) | 1 | ||
| Width in number of modular spacings | 4 | ||
| Built-in depth | mm | 69.5 | |
| Short-time delayed tripping | No |
Тип
- узо
Объем дм3
0,2
дм3
Ток, А
25 А
Количество полюсов
- 4
Модель
CFI6-25/4/03-A-DE
Бренд
Eaton
Вес
0,32 кг
Производитель
Eaton (Moeller)
Страна
США
